EnDuraLast Alternator, Starter, and Ignition Bundle - ALL BMW Airheads
Moto Guzzi 450 watt charging system, Airhead 450 watt charging system, 450 watt charging system, airhead charging system, bmw airhead charging system, Moto guzzi charging system, EnDuraLast Charging System, Omega Charging System, omega 450 watt charging

Alternative Views:


Part #: EDLBundle4

THE complete electrical upgrade bundle for your custom BMW Airhead build!
Kit contains the high output, EDL4 alternator, Complete ignition system including coils, plugs, and plug wires, and high performance EnDuraLast starter (BMW-STR1 or BMW-STR1M depending on option selected.)

View the installation guides for the EDL4Li
HERE, and the EDL-Igns HERE

NOTE: The /5 Airhead models require a starter relay modification, please review the installation guides for details.

PLEASE NOTE: YOU MUST CHOOSE A STARTER, PLEASE CHECK ONE OF THE BOXES BELOW TO SELECT THE CORRECT STARTER FOR YOUR BIKE.

Vehicle Manufacturer:
BMW
Application: BMW Airhead Models
Make/Model: BMW R45, R50, R60, R65, R75, R80, R90, R100

Model Years: 1970 to 1996


Brand :

EME Price $1,143.97
BUY NOW $975.00
You save $168.97!

Part #: EDLBUNDLE4

8 Tooth Starter

Check Box for 8 Tooth Starter:
BMW-STR1M for /5 and /6's [Add $56.00]
9 Tooth Starter

Check Box for 9 Tooth Starter:
BMW-STR1 for /7's and later

Qty:
Description

EDL4 Alternator:
  • Updates the BMW Airhead original, under-performing 20 amp (max) alternator and diode board with modern components.
  • The critically important higher amperage output of this system at low engine RPM's allows use of lighting, heating and other accessories to be used without discharging the battery or overloading the original charging system.
  • High-tech permanent magnet rotor will never overheat and short out. Brushless design eliminates worn out rotor slip rings and brushes.
  • Eliminates "burnt out warning light" no-charge condition of Bosch systems
  • Ducati Energia combination voltage regulator / rectifier made in Italy.
  • Wires up with included wiring harness for minimal, if any, terminal crimping.
  • Original alternator/engine cover fits over the alternator with no alterations required.
  • Designed and manufactured to modern OEM specifications.
  • Incredible low RPM output of 280 Watts at just 2000 RPM's

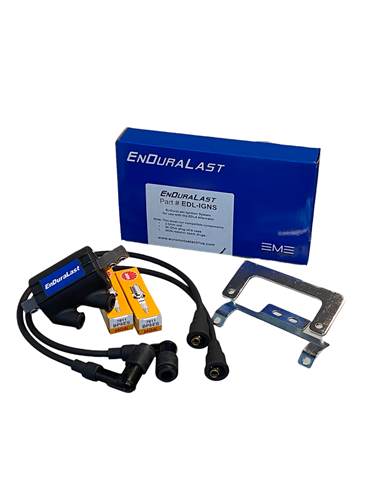

EDL-IGNS:
  • Modern electronic technology updates the BMW Airhead's under-performing Bosch ignition system.
  • The critically important ignition timing is maintained with a crank-mounted trigger rotating past a micro-size hall effect sensor.
  • Dyno developed advance curves for BMW single- and also dual-spark system can be chosen during installation.
  • The original Bosch ignition system can be left in place.

  • Th
    e Ignition Kit contains the following components:
  • Electronic module, Hall-sensor
  • Crank mounted aluminum disc trigger
  • Wiring and mounting hardware
  • Installation guidelines


  • EDL-Coil3.0OHM:
    • High voltage primary terminals.
    • Ultrasonically welded and sealed against moisture.
    • Compact size fits easily under tank.
    • Peak gap current in excess of 50mA.
    • High impact thermoplastic housing.
    • Over 40,000 volts per output.
    • For stock single spark models only.
    • Included are both styles of coil mounting bracket, only one will be used.


    BMW-WSR18:
    • Copper multi-strand inner core wire.
    • 7mm "classic" black silicone jacket.
    • NGK 5k ohm resistor spark plug covers. NGK # LBOFP with terminal stud connector for positive lock on 14mm spark plug stud (nipple nut removed.)
    • Silicone coil plug end.
    • Silicone withstand temperatures up to 1200F / 650C
    • Fully assembled pair for both cylinders.

    BP6ES (Pair):
    • Thread Reach: 14mm / 13/16 (20.8mm).
    • Revolutionary surface air gap firing technology featuring four yttrium-enhanced ground electrodes delivers the longest, most powerful spark for ultimate engine performance
    • Four yttrium-enhanced ground electrodes provide optimum access to the air/fuel mixture for the most efficient combustion, plus the yttrium alloy ground electrodes reduce gap wear and oxidation for extended performance life
    • Features Ytrium Center electrode Benefit, Longer performance life V groove ground electrode, increased flame kernel propagation.
    • Electrode gap is factory set to provide ease of installation
    • NON Resistor plug appropriate for the ignition system EDL-IGNS.

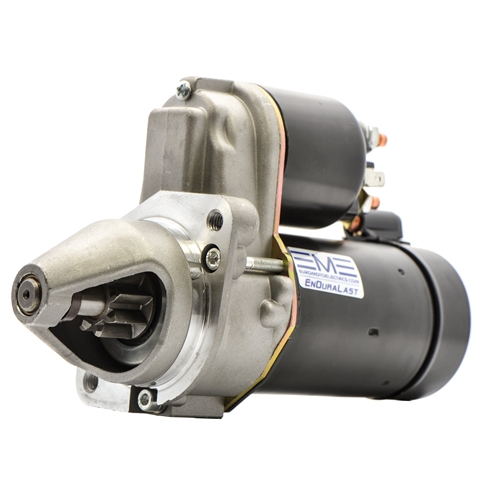

    BMW-STR1 or BMW-STR1M:
    The EnDuraLast starter has 70% to 140% more cranking torque than a new Bosch starter with 20% less amperage draw. Your new EnDuraLast starter will provide years of reliable service due to its efficient modern technology and design producing the increased power rating. The key features are:
    • Magnet retention includes spring clips to ensure magnets do not become loose.
    • New technology provides lighter (6.5 pounds) starter motor with 70 % higher output than the old Bosch design.
    • More efficient high strength permanent magnets that replace conventional field coils, requiring less amperage to turn the starter over. This allows the battery to provide increased voltage and amperage to the ignition system resulting in faster rpm turnovers and quicker starts with less amp draw on the battery.
    • Will operate where other imitation conversion starters will not due to the Denso gear-reduction starter design having a large solenoid with sliding drive-gear assembly designed for automotive applications with large battery reserves.
    • Features a low-voltage solenoid "pull-in" requirement.
    • Permanent magnet style starter will also retrofit older Bosch field coil starters (0.7 Kw).
    • This starter is application-designed for small batteries.


    IMPORTANT: Ensure you are installing the starter with the correct # of gear teeth on the starter drive to match the model year and ring gear installed on the engine. If the incorrect starter is installed it will damage the new starter and / or the ring gear !

    For applications 1970-1976 with 8-Tooth Drive Gear Pinion, select the BMW-STR1M option (additional $56)
    For applications 1977 on with 9-Tooth drive gear pinion, select the BMW-STR1 option
