Universal M8x24 Bolt - BMW Airhead, Hexhead, F/G/K/S Bike, Oilhead, Scooter ; 36 31 7 709 543,51 25 7 711 811 / EnDuraLast

36 31 7 709 543,36317709543,F650 bolt,F800 bolt,G650 bolt,K1 bolt,K100 bolt,K1100 bolt,K1200 bolt,R60 bolt,R80 bolt,R100 bolt,R850 bolt,R900 bolt,R1100 bolt,R1150 bolt,R1200 bolt,F650 m8x25 bolt,F800 m8x25 bolt,G650 m8x25 bolt,K1 m8x25 bolt,K100 m8x25 bol

Alternative Views:

Part #: BoltM8x24-543

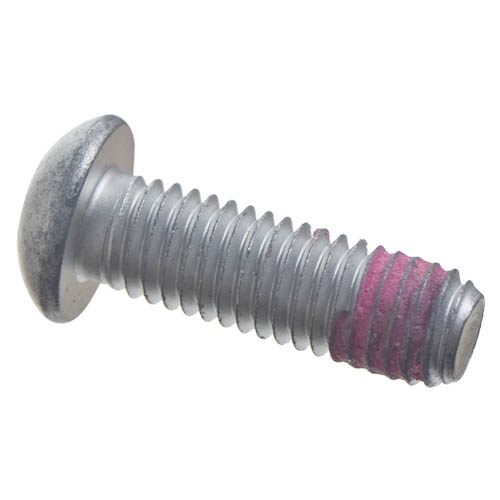

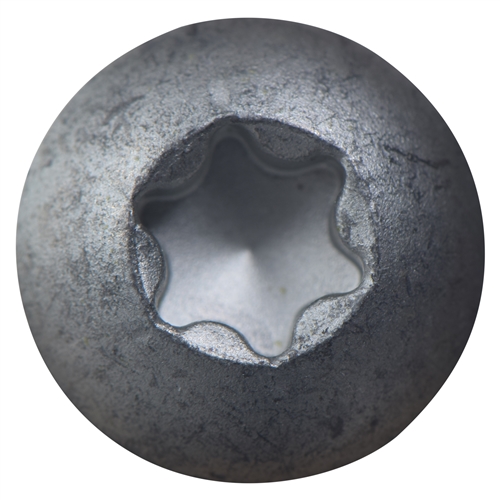

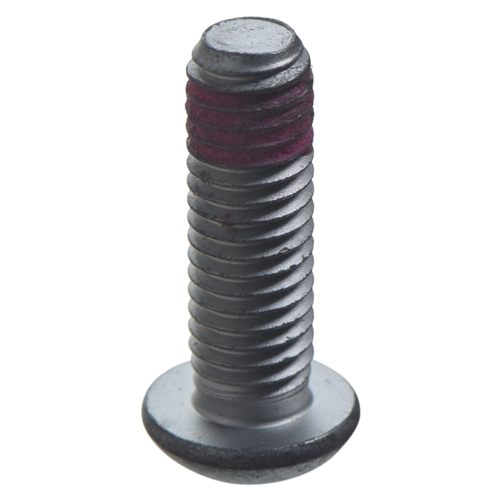

Button Head Bolt (M8X25-10.9 ZNS3) - fits on Brake Rotor, Fork Slider, Side Stand, Headlights, Rear Frame, Luggage Grid and Exhaust.

NOTE: The bolt does NOT fit Hexhead models with cross-spoke wheels, see: BoltM8x20-039

The bolt fits on IgnSwitch110 on some models- 2 required. The M8 x 31 bolt must be drilled out to remove the Ignition Switch.

See rotor installation tips: HERE

Vehicle Manufacturer: BMW
Application: BMW Airhead, F Bike, G Bike, Hexhead, K Bike, Oilhead, S Bike, Scooter Models
Make/Model: BMW F650, F700, F800, G650, HP2, HP4, K1, K100, K1100, K1200, K1300, K1600, R nineT, R60, R80, R100, R850, R900, R1100, R1150, R1200, S1000
Model Years: 1984 - 2017
Manufacturer #: 36 31 7 709 543, 51 25 7 711 811

(See APPLICATION TABLE tab BELOW to verify vehicle fitment)

Brand:

BMW List Price $6.24

USD Price $2.50

Quantity in Stock:133

Part #: BOLTM8X24-543

Quantity:

Description

Application Table

See Related Products Below:

EME Part Number:	BoltM8x24-543
BMW Part Number:	36 31 7 709 543

Model	Year	Application
AIRHEAD MODELS
R65 (2472)	07/85-05/87 USA	FORK SLIDER
R65 20KW (2472)	04/85-06/93 ECE	FORK SLIDER
R65 35KW (2472)	06/85-10/88 ECE	FORK SLIDER
R65RT SF (2472)	07/85-11/88 ECE	FORK SLIDER

R80 (2472)	03/84-01/95 ECE	FORK SLIDER
R80 85-87 (2472)	07/84-07/87 USA	FORK SLIDER
R80GS (47E2)	04/90-10/95 ECE	FORK SLIDER
R80GS (47E3)	01/96-12/96 ECE	FORK SLIDER
R80GS PD (47E2)	08/90-06/95 ECE	FORK SLIDER
R80R (2473)	03/91-06/94 ECE	HEADLIGHT
R80RT (2472)	07/84-12/95 ECE	FORK SLIDER
R80RT 85-87 (2472)	07/84-04/87 USA	FORK SLIDER

R100GS (47E2)	04/90-07/94 ECE	FORK SLIDER
R100GS 91-95 (47E2)	11/90-09/94 USA	FORK SLIDER
R100GS PD (47E2)	08/90-02/96 ECE	FORK SLIDER
R100GS PD 91-95 (47E2)	09/90-12/95 USA	FORK SLIDER
R100R (2473)	03/91-12/95 ECE	HEADLIGHT
R100R (2473)	09/91-12/95 USA	HEADLIGHT
R100RS (2478)	07/86-10/92 ECE	FORK SLIDER
R100RS 88-93 (2478)	08/87-08/92 USA	FORK SLIDER
R100RT (2478)	07/87-12/95 ECE	FORK SLIDER
R100RT 88-95 (2478)	08/87-12/95 USA	FORK SLIDER

OILHEAD MODELS
R850C (59C1)	01/97-09/00 ECE	FRONT WHEEL BRAKE, CAST WHEEL
R850C (59C1)	01/97-09/00 ECE	SIDE STAND
R850GS (259E)	10/96-07/00 ECE	SINGLE COMPONENTS FOR HEADLIGHT
R850R (259R)	03/94-11/02 ECE	FRONT WHEEL BRAKE
R850R (259R)	03/94-11/02 ECE	FRONT WHEEL BRAKE, ABS
R850R (259R)	03/94-11/02 ECE	INSTRUMENT CARRIER, FACELIFT
R850R (259R)	03/94-11/02 ECE	HEADLIGHT BRACKET FACELIFT
R850R (259R)	03/94-11/02 ECE	HEADLIGHT MOUNTING HARDWARE
R850R (259R)	08/95-04/97 USA	FRONT WHEEL BRAKE
R850R (259R)	08/95-04/97 USA	FRONT WHEEL BRAKE, ABS
R850R (259R)	08/95-04/97 USA	INSTRUMENT CARRIER, FACELIFT
R850R (259R)	08/95-04/97 USA	HEADLIGHT BRACKET FACELIFT
R850R (259R)	08/95-04/97 USA	HEADLIGHT MOUNTING HARDWARE
R850R (R28)	11/99-07/07 ECE	FRONT WHEEL BRAKE
R850RT (259T)	03/96-11/01 ECE	FRONT WHEEL BRAKE
R850RT (259T)	03/96-11/01 ECE	FRONT WHEEL BRAKE, ABS
R850RT (R22)	06/00-02/06 ECE	FRONT WHEEL BRAKE, INTEGRAL ABS

R1100GS (259E)	04/93-12/99 ECE	SINGLE COMPONENTS FOR HEADLIGHT
R1100GS (259E)	02/94-07/06 USA	SINGLE COMPONENTS FOR HEADLIGHT
R1100R (259R)	09/93-04/01 ECE	FRONT WHEEL BRAKE
R1100R (259R)	09/93-04/01 ECE	FRONT WHEEL BRAKE, ABS
R1100R (259R)	09/93-04/01 ECE	INSTRUMENT CARRIER, FACELIFT
R1100R (259R)	09/93-04/01 ECE	HEADLIGHT BRACKET FACELIFT
R1100R (259R)	09/93-04/01 ECE	HEADLIGHT MOUNTING HARDWARE
R1100R (259R)	09/94-11/00 USA	FRONT WHEEL BRAKE
R1100R (259R)	09/94-11/00 USA	FRONT WHEEL BRAKE, ABS
R1100R (259R)	09/94-11/00 USA	INSTRUMENT CARRIER, FACELIFT
R1100R (259R)	09/94-11/00 USA	HEADLIGHT BRACKET FACELIFT
R1100R (259R)	09/94-11/00 USA	HEADLIGHT MOUNTING HARDWARE
R1100RS (259S)	01/92-06/01 ECE	FRONT WHEEL BRAKE
R1100RS (259S)	01/92-06/01 ECE	FRONT WHEEL BRAKE, ABS
R1100RS (259S)	06/92-02/01 USA	FRONT WHEEL BRAKE
R1100RS (259S)	06/92-02/01 USA	FRONT WHEEL BRAKE, ABS
R1100RT (259T)	05/94-08/01 ECE	FRONT WHEEL BRAKE
R1100RT (259T)	05/94-08/01 ECE	FRONT WHEEL BRAKE, ABS
R1100RT (259T)	09/94-07/01 USA	FRONT WHEEL BRAKE
R1100RT (259T)	09/94-07/01 USA	FRONT WHEEL BRAKE, ABS
R1100S (259S)	12/96-07/05 ECE	WHEELSPEED SENSOR, FRONT
R1100S (259S)	12/96-07/05 ECE	FRONT WHEEL BRAKE, ABS
R1100S (259S)	12/96-07/05 ECE	FRONT BRAKE WITHOUT ABS
R1100S (259S)	12/96-07/05 ECE	FRONT WHEEL BRAKE, INTEGRAL ABS
R1100S (259S)	01/97-09/04 USA	WHEELSPEED SENSOR, FRONT
R1100S (259S)	01/97-09/04 USA	FRONT WHEEL BRAKE, ABS
R1100S (259S)	01/97-09/04 USA	FRONT BRAKE WITHOUT ABS
R1100S (259S)	01/97-09/04 USA	FRONT WHEEL BRAKE, INTEGRAL ABS

R1150R (R28)	11/99-06/06 ECE	FRONT WHEEL BRAKE
R1150R (R28)	03/00-02/06 USA	FRONT WHEEL BRAKE
R1150R Rockster (R28)	03/02-07/05 ECE	FRONT WHEEL BRAKE
R1150R Rockster (R28)	03/02-07/05 USA	FRONT WHEEL BRAKE
R1150RS (R22)	11/00-11/04 ECE	FRONT WHEEL BRAKE
R1150RS (R22)	11/00-01/04 USA	FRONT WHEEL BRAKE
R1150RT (R22)	01/00-03/06 ECE	FRONT WHEEL BRAKE, INTEGRAL ABS
R1150RT (R22)	02/00-02/06 USA	FRONT WHEEL BRAKE, INTEGRAL ABS

R1200 Montauk (59C2)	10/02-10/04 ECE	CAST RIM, FRONT
R1200 Montauk (59C2)	10/02-10/04 USA	CAST RIM, FRONT
R1200C (59C1)	04/96-05/03 ECE	FRONT WHEEL BRAKE, CAST WHEEL
R1200C (59C1)	04/96-05/03 ECE	SIDE STAND
R1200C 98-03 (59C1)	06/96-05/03 USA	FRONT WHEEL BRAKE, CAST WHEEL
R1200C 98-03 (59C1)	06/96-05/03 USA	SIDE STAND
R1200C I (59C3)	05/00-05/03 ECE	FRONT WHEEL BRAKE, CAST WHEEL
R1200C I (59C3)	05/00-05/03 ECE	SIDE STAND
R1200C I 01-03 (59C3)	09/00-05/03 USA	FRONT WHEEL BRAKE, CAST WHEEL
R1200C I 01-03 (59C3)	09/00-05/03 USA	SIDE STAND
R1200CL (K30)	10/01-07/04 ECE	CAST RIM, FRONT
R1200CL (K30)	10/01-07/04 USA	CAST RIM, FRONT

SCOOTER MODELS
C650GT (K19)	01/11-07/15 ECE	LUGGAGE GRID
C650GT (K19)	01/11-05/15 USA	LUGGAGE GRID

F BIKE MODELS
F650CS (K14)	11/00-09/03 ECE	REAR FRAME
F650CS (K14)	07/03-07/05 ECE	REAR FRAME
F650CS 03 (K14)	11/00-09/03 USA	REAR FRAME
F650CS 05 (K14)	01/04-02/05 USA	REAR FRAME
F650GS (R13)	02/99-11/03 ECE	EXHAUST SYSTEM PARTS WITH MOUNTS
F650GS (R13)	02/99-11/03 ECE	REAR FRAME
F650GS 01-04 (R13)	02/99-09/03 USA	EXHAUST SYSTEM PARTS WITH MOUNTS
F650GS 01-04 (R13)	02/99-09/03 USA	REAR FRAME
F650GS Dakar (R13)	11/99-11/03 ECE	EXHAUST SYSTEM PARTS WITH MOUNTS
F650GS Dakar (R13)	11/99-11/03 ECE	REAR FRAME
F650GS Dakar 01-04 (R13)	04/00-10/03 USA	EXHAUST SYSTEM PARTS WITH MOUNTS
F650GS Dakar 01-04 (R13)	04/00-10/03 USA	REAR FRAME
F650GS Dakar/M (R13)	03/03-09/07 ECE	EXHAUST SYSTEM PARTS WITH MOUNTS
F650GS Dakar/M (R13)	03/03-09/07 ECE	REAR FRAME
F650GS Dakar/M 05-07 (R13)	08/03-12/06 USA	EXHAUST SYSTEM PARTS WITH MOUNTS
F650GS Dakar/M 05-07 (R13)	08/03-12/06 USA	REAR FRAME
F650GS/M (R13)	03/03-10/07 ECE	EXHAUST SYSTEM PARTS WITH MOUNTS
F650GS/M (R13)	03/03-10/07 ECE	REAR FRAME
F650GS/M 05-07 (R13)	04/03-09/07 USA	EXHAUST SYSTEM PARTS WITH MOUNTS
F650GS/M 05-07 (R13)	04/03-09/07 USA	REAR FRAME

F800S (K71)	12/04-05/10 ECE	FRONT BRAKE, RETROFIT, RIVET PACKAGE
F800S (K71)	12/04-01/08 USA	FRONT BRAKE, RETROFIT, RIVET PACKAGE
F800ST (K71)	12/04-07/12 ECE	FRONT BRAKE, RETROFIT, RIVET PACKAGE
F800ST (K71)	12/04-07/12 USA	FRONT BRAKE, RETROFIT, RIVET PACKAGE

G BIKE MODELS
G650GS 08-09 (R131)	02/08-09/09 USA	REAR FRAME
G650GS 08-09 (R131)	10/08-04/10 ECE	REAR FRAME
G650GS 08-10 (R131)	02/08-09/10 ECE	REAR FRAME
G650GS 10-15 (R131)	04/10-10/15 ECE	EXHAUST SYSTEM PARTS WITH MOUNTS
G650GS 10-15 (R131)	04/10-10/15 ECE	REAR FRAME
G650GS 10-15 (R131)	04/10-10/15 USA	EXHAUST SYSTEM PARTS WITH MOUNTS
G650GS 10-15 (R131)	04/10-10/15 USA	REAR FRAME
G650GS Sertao (R134)	07/10-10/14 USA	EXHAUST SYSTEM PARTS WITH MOUNTS
G650GS Sertao (R134)	07/10-10/14 USA	REAR FRAME
G650GS Sertao (R134)	07/10-11/14 ECE	EXHAUST SYSTEM PARTS WITH MOUNTS
G650GS Sertao (R134)	07/10-11/14 ECE	REAR FRAME

K BIKE MODELS
K1 (89V1)	08/88-09/93 ECE	FRONT WHEEL BRAKE
K1 (89V1)	08/88-09/93 ECE	FRONT WHEEL BRAKE, ABS
K1 (89V1)	01/89-11/92 USA	FRONT WHEEL BRAKE
K1 (89V1)	01/89-11/92 USA	FRONT WHEEL BRAKE, ABS

K100RS (89V1)	03/89-06/92 ECE	FRONT WHEEL BRAKE
K100RS (89V1)	03/89-06/92 ECE	FRONT WHEEL BRAKE, ABS
K100RS (89V1)	07/90-01/92 USA	FRONT WHEEL BRAKE
K100RS (89V1)	07/90-01/92 USA	FRONT WHEEL BRAKE, ABS

K1100LT (89V2)	06/89-04/99 ECE	FRONT WHEEL BRAKE
K1100LT (89V2)	06/89-04/99 ECE	FRONT WHEEL BRAKE, ABS
K1100LT (89V2)	02/92-03/97 USA	FRONT WHEEL BRAKE
K1100LT (89V2)	02/92-03/97 USA	FRONT WHEEL BRAKE, ABS
K1100RS (89V2)	04/92-12/96 ECE	FRONT WHEEL BRAKE
K1100RS (89V2)	04/92-12/96 ECE	FRONT WHEEL BRAKE, ABS
K1100RS (89V2)	11/92-06/96 USA	FRONT WHEEL BRAKE
K1100RS (89V2)	11/92-06/96 USA	FRONT WHEEL BRAKE, ABS

K1200GT (K41)	03/02-07/05 ECE	FRONT WHEEL SENSOR INTEGRAL ABS
K1200GT (K41)	03/02-07/05 ECE	FRONT WHEEL BRAKE, INTEGRAL ABS
K1200GT (K44)	11/04-09/08 ECE	FRONT BRAKE, RETROFIT, RIVET PACKAGE
K1200GT (K44)	11/04-09/08 ECE	FRONT BRAKE, STANDARD DESIGN, RIVET PACK
K1200GT 03-04 (K41)	04/02-10/04 USA	FRONT WHEEL SENSOR INTEGRAL ABS
K1200GT 03-04 (K41)	04/02-10/04 USA	FRONT WHEEL BRAKE, INTEGRAL ABS
K1200GT 06-08 (K44)	11/04-09/08 USA	FRONT BRAKE, RETROFIT, RIVET PACKAGE
K1200GT 06-08 (K44)	11/04-09/08 USA	FRONT BRAKE, STANDARD DESIGN, RIVET PACK
K1200LT (89V3)	02/03-07/08 ECE	FRONT WHEEL SENSOR INTEGRAL ABS
K1200LT (89V3)	02/03-07/08 ECE	FRONT BRAKE, STANDARD DESIGN, RIVET PACK
K1200LT (89V3)	06/97-12/03 ECE	FRONT WHEEL BRAKE, INTEGRAL ABS
K1200LT (89V3)	06/97-12/03 ECE	FRONT WHEEL SENSOR INTEGRAL ABS
K1200LT (89V3)	06/97-12/03 ECE	FRONT WHEEL BRAKE, ABS
K1200LT 05-09 (89V3)	02/03-07/08 USA	FRONT WHEEL SENSOR INTEGRAL ABS
K1200LT 05-09 (89V3)	02/03-07/08 USA	FRONT BRAKE, STANDARD DESIGN, RIVET PACK
K1200LT 99-04 (89V3)	06/97-11/03 USA	FRONT WHEEL BRAKE, INTEGRAL ABS
K1200LT 99-04 (89V3)	06/97-11/03 USA	FRONT WHEEL SENSOR INTEGRAL ABS
K1200LT 99-04 (89V3)	06/97-11/03 USA	FRONT WHEEL BRAKE, ABS
K1200R (K43)	03/04-08/08 ECE	FRONT BRAKE, STANDARD DESIGN, RIVET PACK
K1200R (K43)	03/04-08/08 ECE	FRONT BRAKE, RETROFIT, RIVET PACKAGE
K1200R (K43)	04/04-07/08 USA	FRONT BRAKE, STANDARD DESIGN, RIVET PACK
K1200R (K43)	04/04-07/08 USA	FRONT BRAKE, RETROFIT, RIVET PACKAGE
K1200R Sport (K43)	06/05-07/07 ECE	FRONT BRAKE, RETROFIT, RIVET PACKAGE
K1200R Sport (K43)	06/05-07/07 USA	FRONT BRAKE, RETROFIT, RIVET PACKAGE
K1200RS (89V3)	04/96-04/05 ECE	FRONT WHEEL BRAKE, CAST WHEEL
K1200RS (K41)	03/00-07/05 ECE	FRONT WHEEL SENSOR INTEGRAL ABS
K1200RS (K41)	03/00-07/05 ECE	FRONT WHEEL BRAKE, INTEGRAL ABS
K1200RS (K41)	03/00-07/05 ECE	FRONT WHEEL BRAKE WITHOUT INTEGRAL ABS
K1200RS 02-04 (K41)	03/00-07/04 USA	FRONT WHEEL SENSOR INTEGRAL ABS
K1200RS 02-04 (K41)	03/00-07/04 USA	FRONT WHEEL BRAKE, INTEGRAL ABS
K1200RS 02-04 (K41)	03/00-07/04 USA	FRONT WHEEL BRAKE WITHOUT INTEGRAL ABS
K1200RS 98-01 (89V3)	05/96-12/00 USA	FRONT WHEEL BRAKE, CAST WHEEL
K1200S (K40)	04/03-08/08 ECE	FRONT BRAKE, RETROFIT, RIVET PACKAGE
K1200S (K40)	04/03-08/08 ECE	FRONT BRAKE, STANDARD DESIGN, RIVET PACK
K1200S (K40)	04/03-08/08 USA	FRONT BRAKE, RETROFIT, RIVET PACKAGE
K1200S (K40)	04/03-08/08 USA	FRONT BRAKE, STANDARD DESIGN, RIVET PACK

HEXHEAD MODELS
R900RT 05-09 (K26)	04/05-09/09 ECE	BRAKE SERVICE
R900RT 05-09 (K26)	04/05-09/09 ECE	FRONT BRAKE, RETROFIT, RIVET PACKAGE
R900RT 05-09 (K26)	04/05-07/09 USA	BRAKE SERVICE
R900RT 05-09 (K26)	04/05-07/09 USA	FRONT BRAKE, RETROFIT, RIVET PACKAGE

R1200GS (K25)	12/02-10/07 ECE	BRAKE SERVICE
R1200GS (K25)	12/02-10/07 ECE	FRONT BRAKE RIVET PACKAGE
R1200GS 05-07 (K25)	03/03-09/07 USA	BRAKE SERVICE
R1200GS 05-07 (K25)	03/03-09/07 USA	FRONT BRAKE RIVET PACKAGE
R1200GS ADV (K255)	03/05-09/07 ECE	BRAKE SERVICE
R1200GS ADV (K255)	03/05-09/07 ECE	FRONT BRAKE RIVET PACKAGE
R1200GS ADV 06-07 (K255)	03/05-09/07 USA	BRAKE SERVICE
R1200GS ADV 06-07 (K255)	03/05-09/07 USA	FRONT BRAKE RIVET PACKAGE
R1200R 05-10 (K27)	11/05-10/10 ECE	FRONT BRAKE, RETROFIT, RIVET PACKAGE
R1200R 05-10 (K27)	11/05-09/10 USA	FRONT BRAKE, RETROFIT, RIVET PACKAGE
R1200RT (K26)	11/03-11/09 ECE	FRONT BRAKE, RETROFIT, RIVET PACKAGE
R1200RT 05-09 (K26)	11/03-09/09 USA	FRONT BRAKE, RETROFIT, RIVET PACKAGE
R1200S (K29)	11/04-12/06 ECE	BRAKE SERVICE
R1200S (K29)	11/04-12/06 ECE	FRONT BRAKE RIVET PACKAGE
R1200S (K29)	11/04-09/06 USA	BRAKE SERVICE
R1200S (K29)	11/04-09/06 USA	FRONT BRAKE RIVET PACKAGE
R1200ST (K28)	05/03-11/07 ECE	FRONT BRAKE, RETROFIT, RIVET PACKAGE
R1200ST (K28)	06/03-06/07 USA	FRONT BRAKE, RETROFIT, RIVET PACKAGE
