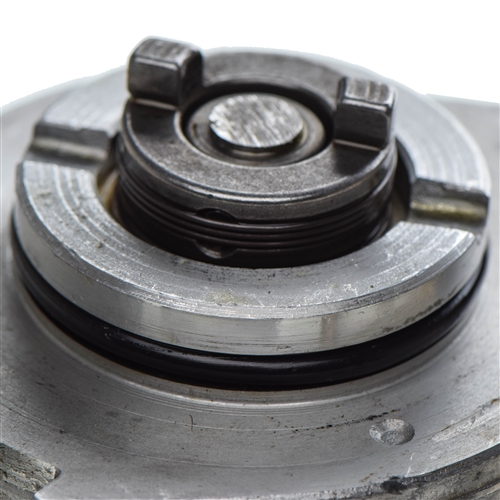

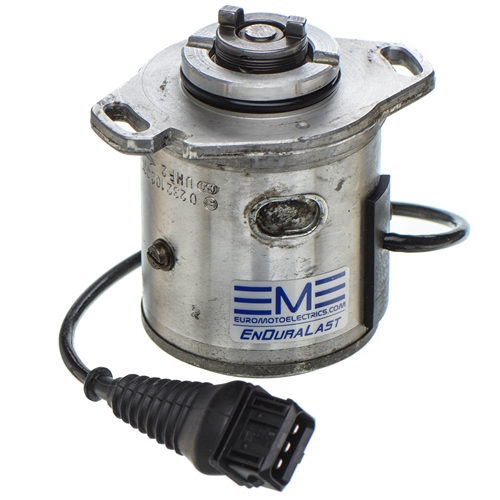

Remanufactured BMW Airhead Bean Can ; 12 11 1 244 088 / EnDuraLast

To keep the remanufactured program going a core charge of $100 is applied to ensure the exchange of your original can for a remanufactured one. A return shipping label is provided and upon receipt of your original unit, the $100 core charge is refunded. To forgo the core charge, you may contact us for prior authorization to send your original unit prior to placing your order.

No credit given for Bean Cans with Contact Points.

International Customers: Due to high return freight costs pre-paid shipping labels will not be included for core return credit.

Vehicle Manufacturer: BMW
Application: BMW Airhead 247 Models with Bosch ignition sensor
Make/Model: BMW R45, R60, R65, R80, R100
Model Years: 1980 - 1996
Manufacturer #: 12 11 1 244 088; 12 11 2 413 906

(See APPLICATION TABLE tab BELOW to verify vehicle fitment)

Remanufactured :

in USA

with electrical components from Germany

BMW List Price $672.60

USD Price $300.00

BUY NOW $280.00

Quantity in Stock:12

Part #: BEANCANREMAN

Completely remanufactured in USA by a BMW Trained mechanic with NEW electronics made in Germany.

Installation Steps are:

Disconnect Battery
Remove front cover
Mark beancan position
Loosen two screws till beancan can rotate
Put beancan back in original position
Hookup timing light to left plug
Remove timing hole cover
Reconnect Battery
Start engine - don't need full warm up
With timing light aimed at hole rev engine till timing stops advancing. Take quick look at tach should be about 3000 rpm.
Rev engine to a little over where it stopped advancing. Point timing light at the hole Z mark should be centered in the timing hole
With engine revving and timing light on hole rotate beancan till Z mark is centered.
Shut off engine
Snug up beancan screws
Disconnect BatteryReplace front cover

Removing Old Bean Can (Courtesy Brook Reams)

Installation Tips - Courtesy Brook Reams

EME Part Number:	BeanCanReMan
BMW Part Number:	12 11 1 244 088
	12 11 2 413 906
Model	Year
R45 (248)	01/78-07/85 ECE
R45/N (248)	03/78-07/85 ECE
R45T (248)	10/80-06/85 ECE
R45T/N (248)	09/80-07/85 ECE

R60 TIC (2477)	09/78-11/82 ECE

R65 (2472)	07/85-05/87 USA
R65 (248)	01/78-07/85 ECE
R65 (248)	07/78-04/85 USA
R65 20KW (2472)	04/85-06/93 ECE
R65 35KW (2472)	06/85-10/88 ECE
R65GS (2471)	11/87-11/92 ECE
R65LS (248)	03/81-03/85 ECE
R65LS (248)	06/81-02/85 USA
R65RT SF (2472)	07/85-11/88 ECE
R65T (248)	09/80-07/85 ECE

R80 (2472)	03/84-01/95 ECE
R80 (2477)	04/77-11/84 ECE
R80 (2477)	04/77-07/80 USA
R80 85-87 (2472)	07/84-07/87 USA
R80G/S (2471)	06/80-03/87 USA
R80GS (2471)	05/80-07/87 ECE
R80GS (47E1)	01/87-07/90 ECE
R80GS (47E2)	04/90-10/95 ECE
R80GS (47E3)	01/96-12/96 ECE
R80GS PD (47E1)	06/90-07/90 ECE
R80GS PD (47E2)	08/90-06/95 ECE
R80R (2473)	03/91-06/94 ECE
R80R Mystik (2473)	03/94-03/95 ECE
R80RT (2472)	07/84-12/95 ECE
R80RT (2477)	06/82-11/84 ECE
R80RT (2477)	08/82-10/84 USA
R80RT 85-87 (2472)	07/84-04/87 USA
R80ST (2471)	04/82-10/84 ECE
R80ST (2471)	10/82-10/84 USA

R100/7T (2474)	04/77-10/84 ECE
R100/T (2474)	09/78-09/84 USA
R100CS (2474)	06/80-10/84 ECE
R100CS (2474)	09/80-09/84 USA
R100GS (47E1)	12/86-07/90 ECE
R100GS (47E1)	01/87-03/90 USA
R100GS (47E2)	04/90-07/94 ECE
R100GS 91-95 (47E2)	11/90-09/94 USA
R100GS PD (47E1)	02/89-07/90 ECE
R100GS PD (47E1)	06/89-04/90 USA
R100GS PD (47E2)	08/90-02/96 ECE
R100GS PD 91-95 (47E2)	09/90-12/95 USA
R100R (2473)	03/91-12/95 ECE
R100R (2473)	09/91-12/95 USA
R100R Mystik (2473)	12/93-01/96 ECE
R100R Mystik (2473)	03/94-09/95 USA
R100RS (2474)	03/76-11/84 ECE
R100RS (2478)	07/86-10/92 ECE
R100RS 77-84 (2474)	05/76-10/84 USA
R100RS 88-93 (2478)	08/87-08/92 USA
R100RT (2474)	06/78-10/84 ECE
R100RT (2478)	07/87-12/95 ECE
R100RT 79-84 (2474)	04/78-09/84 USA
R100RT 88-95 (2478)	08/87-12/95 USA
R100TIC (2474)	11/80-09/84 ECE
